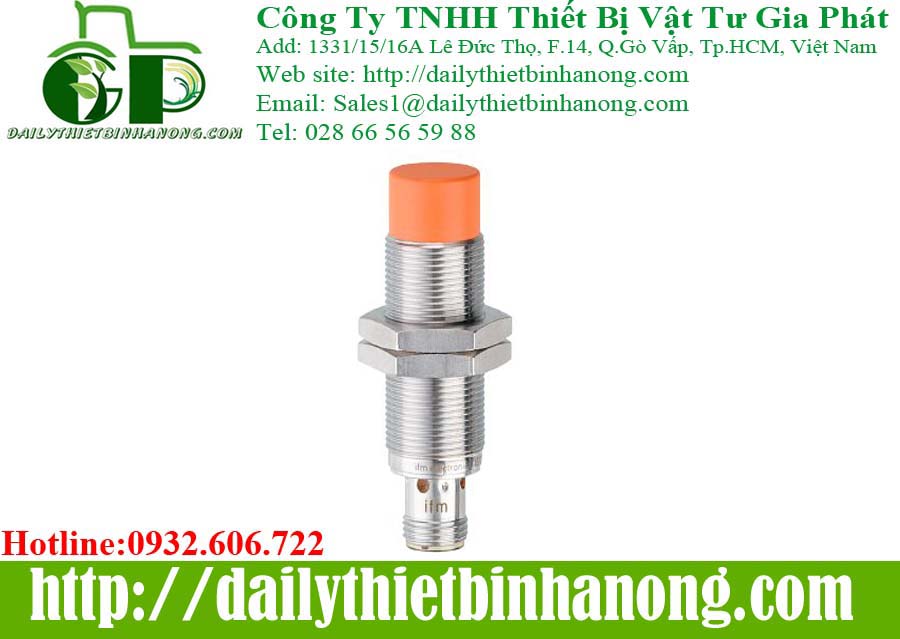

Cảm biến tiệm cận IFM model IG6084
Product characteristics
Electrical design
PNP/NPN; (parameterisable)
Output function
normally open / normally closed; (parameterisable)
Communication interface
IO-Link
Housing
threaded type
Dimensions [mm]
M18 x 1 / L = 60
Electrical data
Operating voltage [V]
15...30 DC
Current consumption [mA]
< 30
Protection class
II
Reverse polarity protection
yes
Outputs
Electrical design
PNP/NPN; (parameterisable)
Output function
normally open / normally closed; (parameterisable)
Max. voltage drop switching output DC [V]
2.5
Permanent current rating of switching output DC [mA]
100
Switching frequency DC [Hz]
300
Analogue voltage output [V]
0...10; (linear; gradient: 1,389 V/mm; for frontal approach and for target made of mild steel: 24 x 24 x 1 mm)
Min. load resistance [Ω]
2000
Short-circuit protection
yes
Overload protection
yes
Detection zone
Measuring range [mm]
0.8...8
Switch point IO-Link [mm]
1.5...7.48
Accuracy / deviations
Correction factor
steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.5 / copper: 0.4
Hysteresis [% of Sr]
3...15
Note on hysteresis
parameterisable
Linearity error of analogue output [%]
± 1; (of the final value of the measuring range)
Repeatability analogue output [%]
± 1; (of the final value of the measuring range)
Temperature coefficient [%/K vom MEW]
±0,15
Temperature drift
± 5 %; (of the final value of the measuring range)
Response times
Response time [ms]
< 10
Interfaces
Communication interface
IO-Link
Transmission type
COM2 (38,4 kBaud)
IO-Link revision
1.1
SDCI standard
IEC 61131-9
Profiles
Smart Sensor: Identification and diagnosis; Multi-channel, two setpoint switching sensor, type 0 Generic Profiled Sensor; Teach Channel
SIO mode
yes
Required master port type
A
Min. process cycle time [ms]
3.2
IO-Link process data (cyclical)
function
bit length
process value
16
device status
4
binary switching information
2
IO-Link functions (acyclical)
switching cycles counter; switch-on cycle counter; operating hours counter; internal temperature; application specific tag
Supported DeviceIDs
Type of operation
DeviceID
Default
1206
Note
For further information please see the IODD PDF file under "Downloads"
Operating conditions
Ambient temperature [°C]
-25...80
Protection
IP 65; IP 66; IP 67; IP 68; IP 69K
Tests / approvals
EMC
EN 61000-4-2 ESD
4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated
10 V/m
EN 61000-4-4 Burst
2 kV
EN 61000-4-6 HF conducted
10 V
EN 55011
class B
Vibration resistance
EN 60068-2-6 Fc
20 g (10...3000 Hz) / 50 sweep cycles, 1 octave per minute, in 3 axes
Shock resistance
EN 60068-2-27 Ea
100 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes
Continuous shock resistance
EN 60068-2-27
40 g 6 ms; 4000 shocks each in every direction of the 3 coordinate axes
Fast temperature change
EN 60068-2-14 Na
TA = -25°C; TB = 80°C; t1 = 30 min; t2 = < 10 s 50 cycles
MTTF [years]
222
Embedded software included
yes
UL approval
Ta
-25...60 °C
Enclosure type
Type 1
voltage supply
Limited Voltage/Current
UL Approval no.
A024
File number UL
E174191
Mechanical data
Weight [g]
62
Housing
threaded type
Mounting
non-flush mountable
Dimensions [mm]
M18 x 1 / L = 60
Thread designation
M18 x 1
Materials
Housing: brass white bronze coated; sensing face: PBT orange; LED-Fenster: PEI; lock nuts: brass white bronze coated
Tightening torque [Nm]
25
Displays / operating elements
Display
target in measuring range
4 x LED, yellow lights
target outside measuring range
4 x LED, yellow flashing
Accessories
Items supplied
lock nuts: 2
Remarks
Pack quantity
1 pcs.
Electrical connection - plug
Connection
Connector: 1 x M12; coding: A
